Note:
1. Due to program settings, usage is restricted exclusively to the provided wiring harness and push-button switches.
2. Any wiring attempts using non-provided push-button switches will be ineffective.and this product does not support connection to the switch panel.
Features:
Dual-Type LEDs Boost Performance: Each light integrates 2× SFT-12R + 2× SST40-F50 high-performance LEDs, delivering 6,000 lumens per unit. The pair combines for a staggering 12,000-lumen main beam, complemented by a 960-lumen RGB backlight, turning night into day with exceptional penetration.

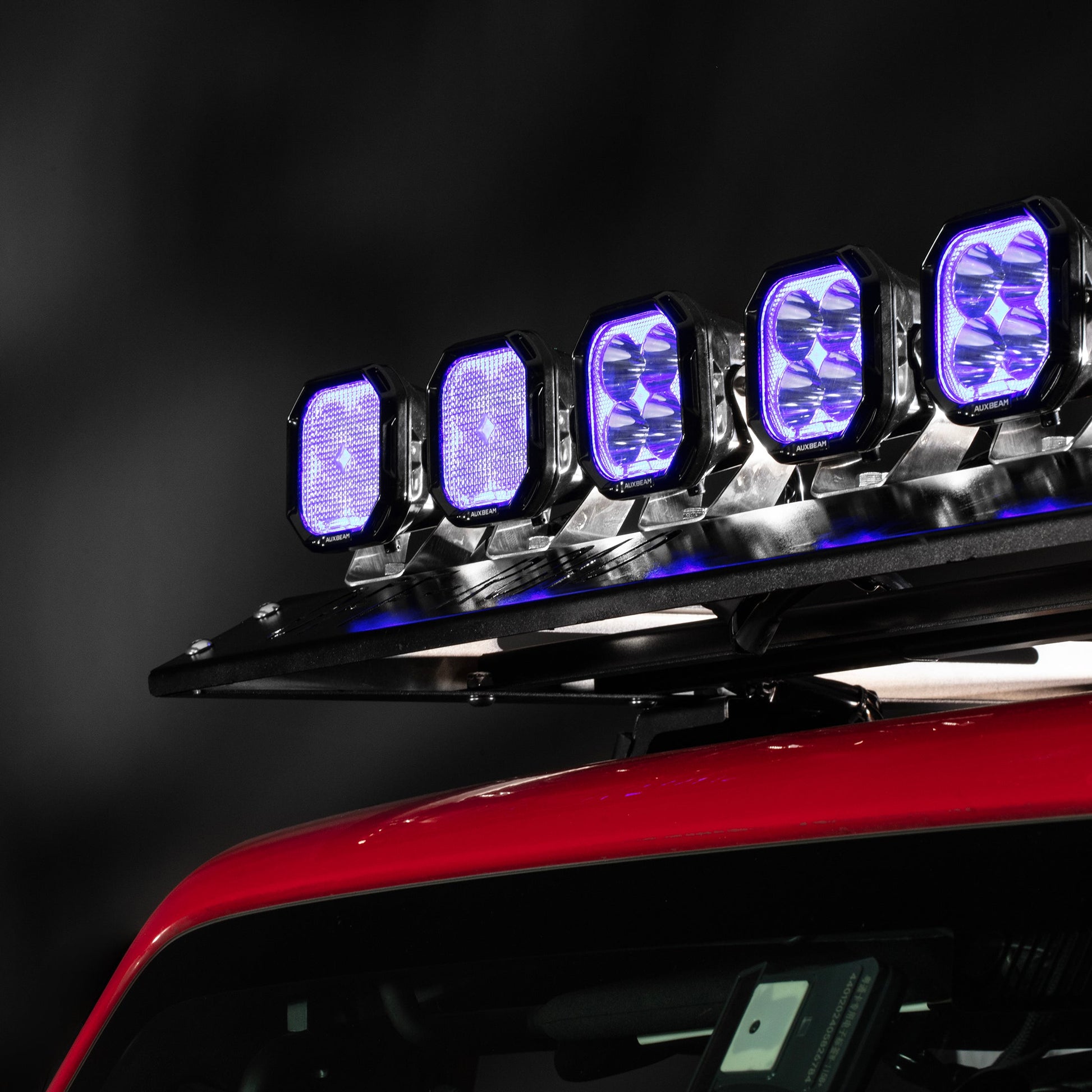

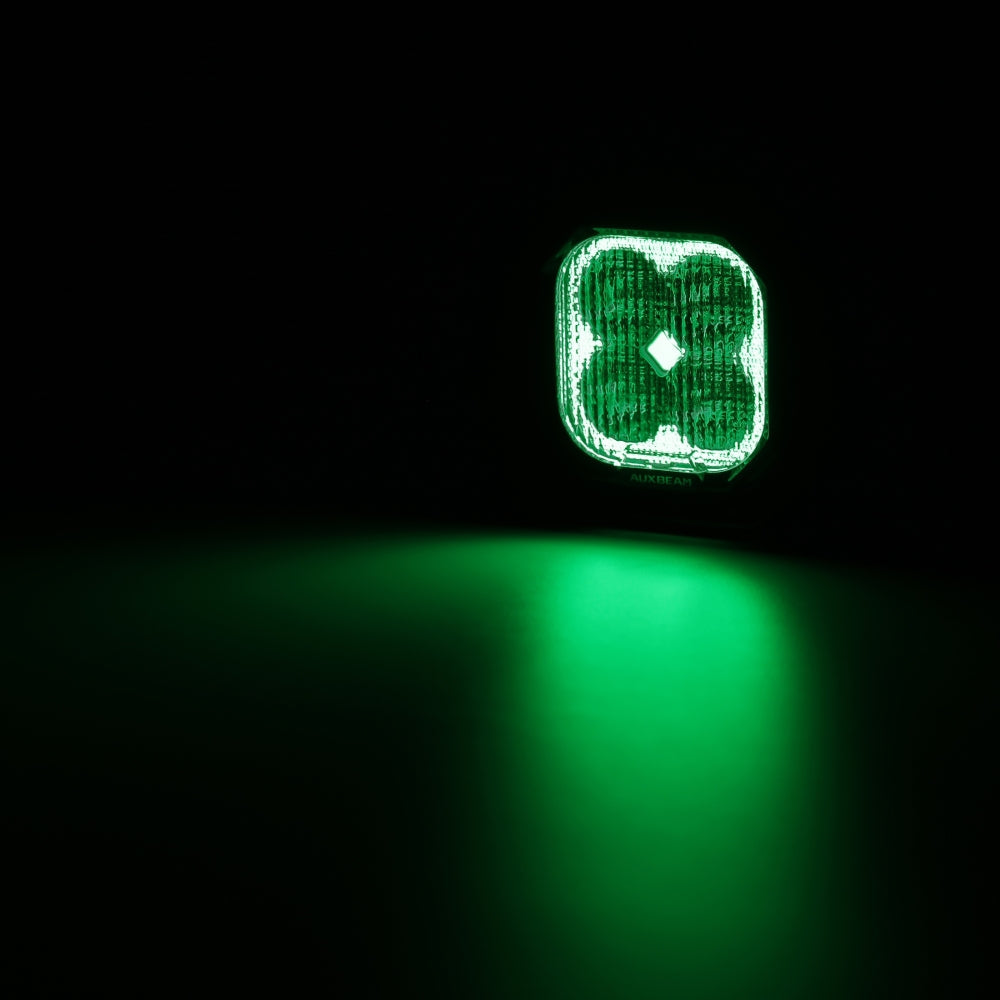

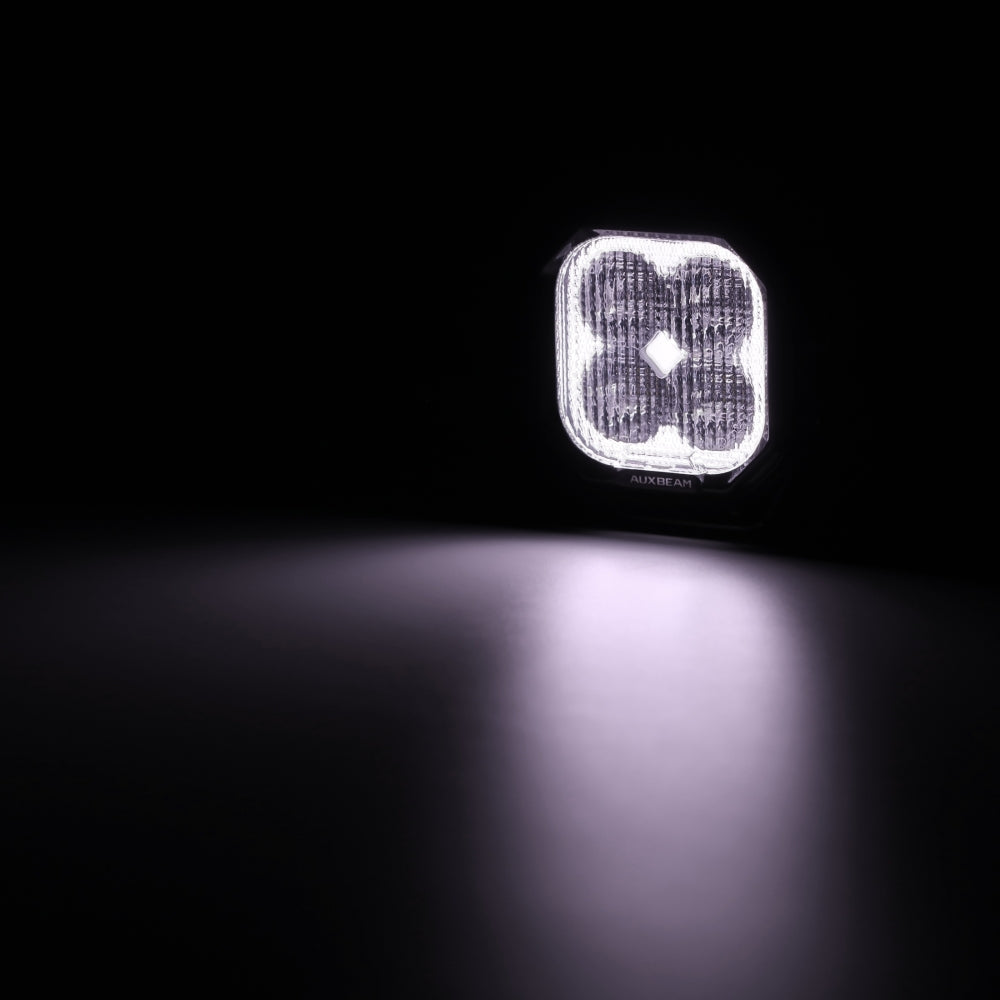

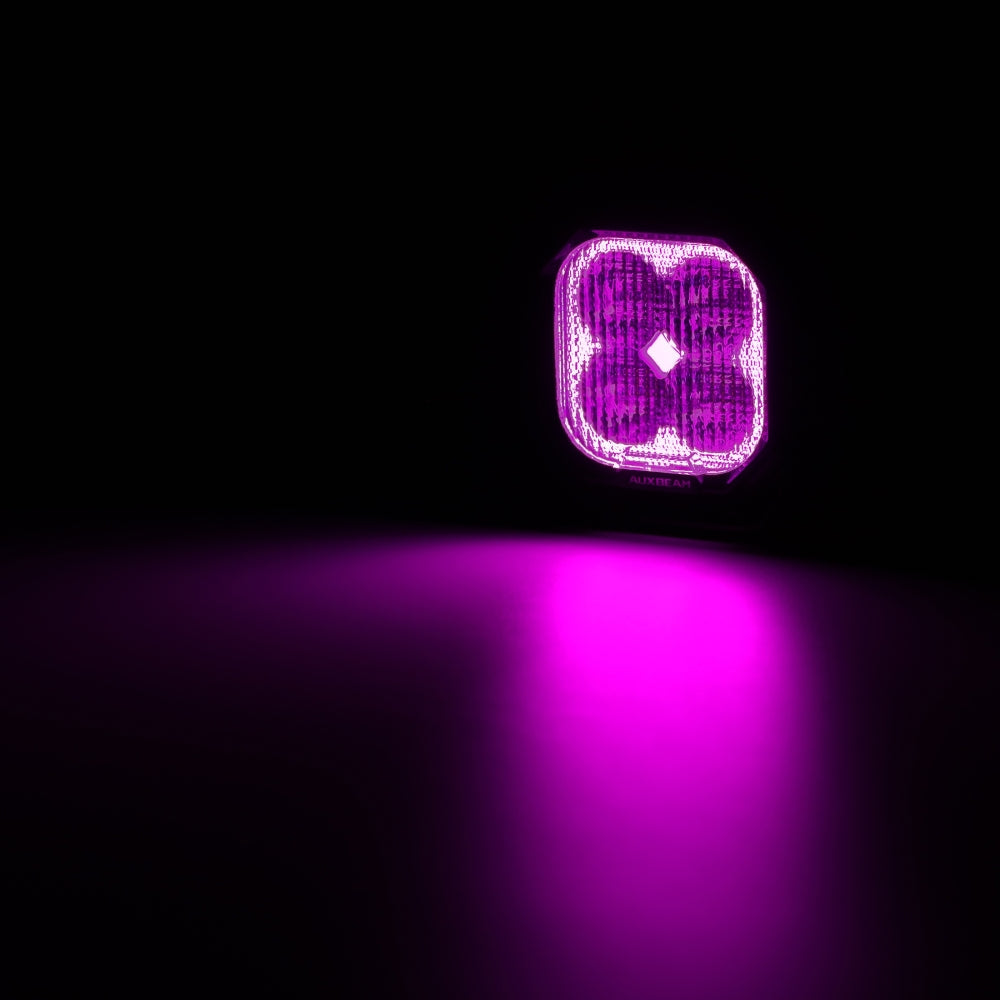

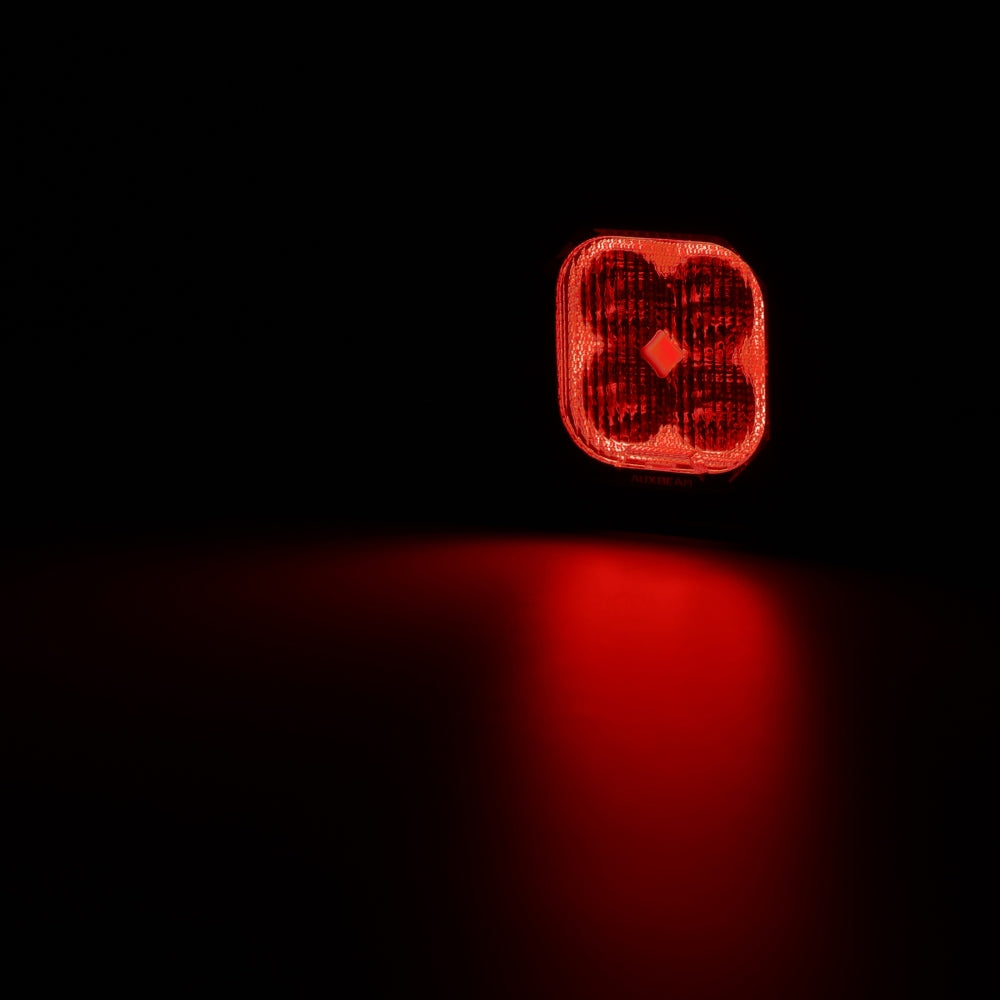

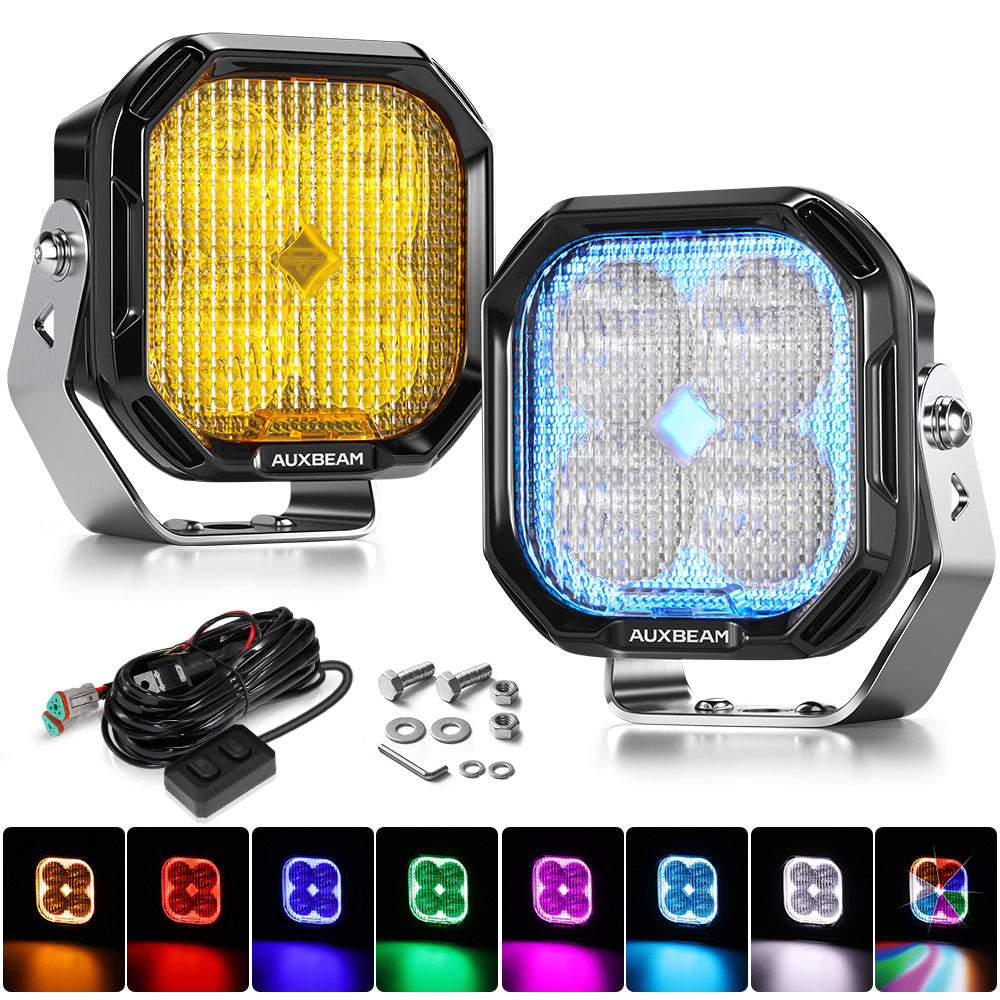

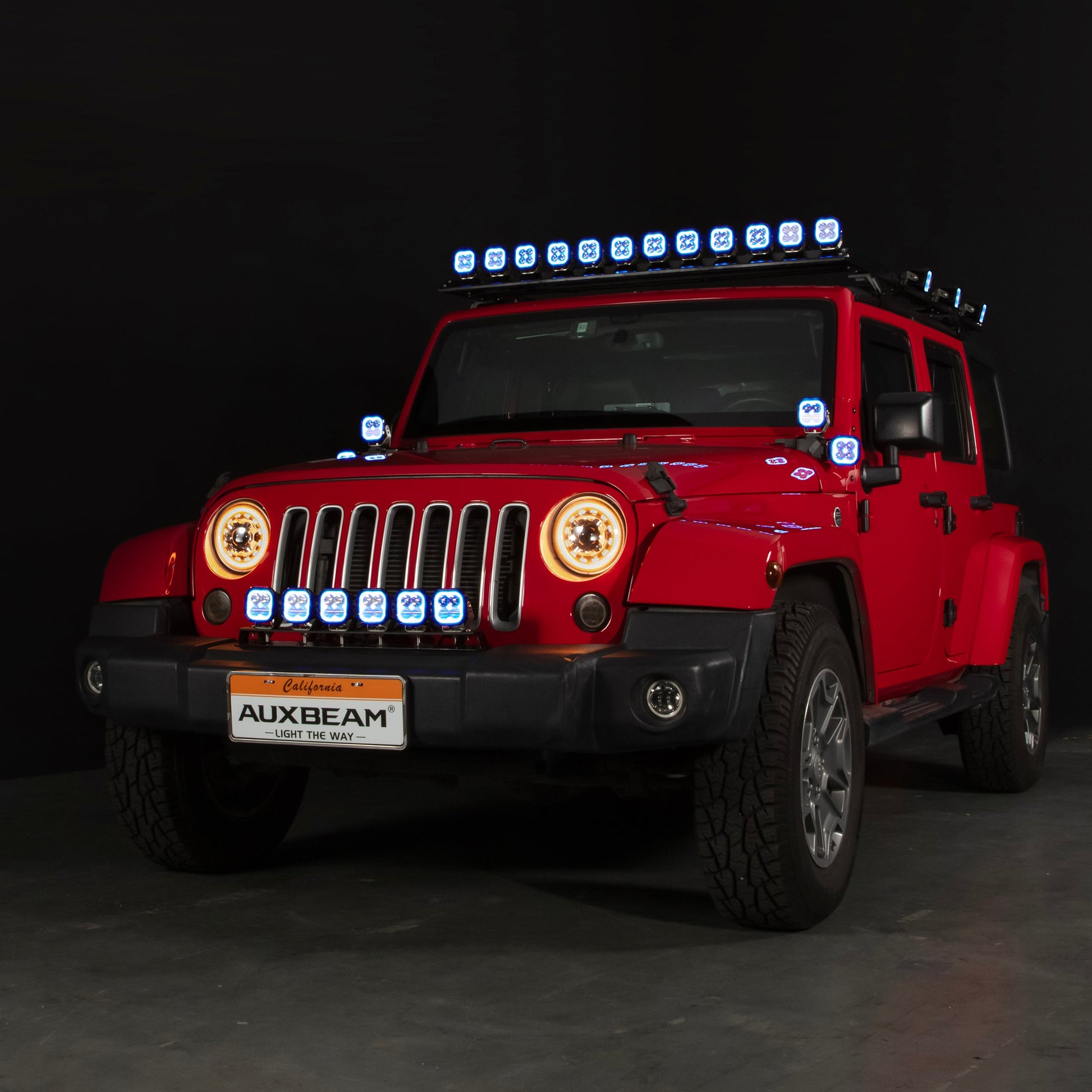

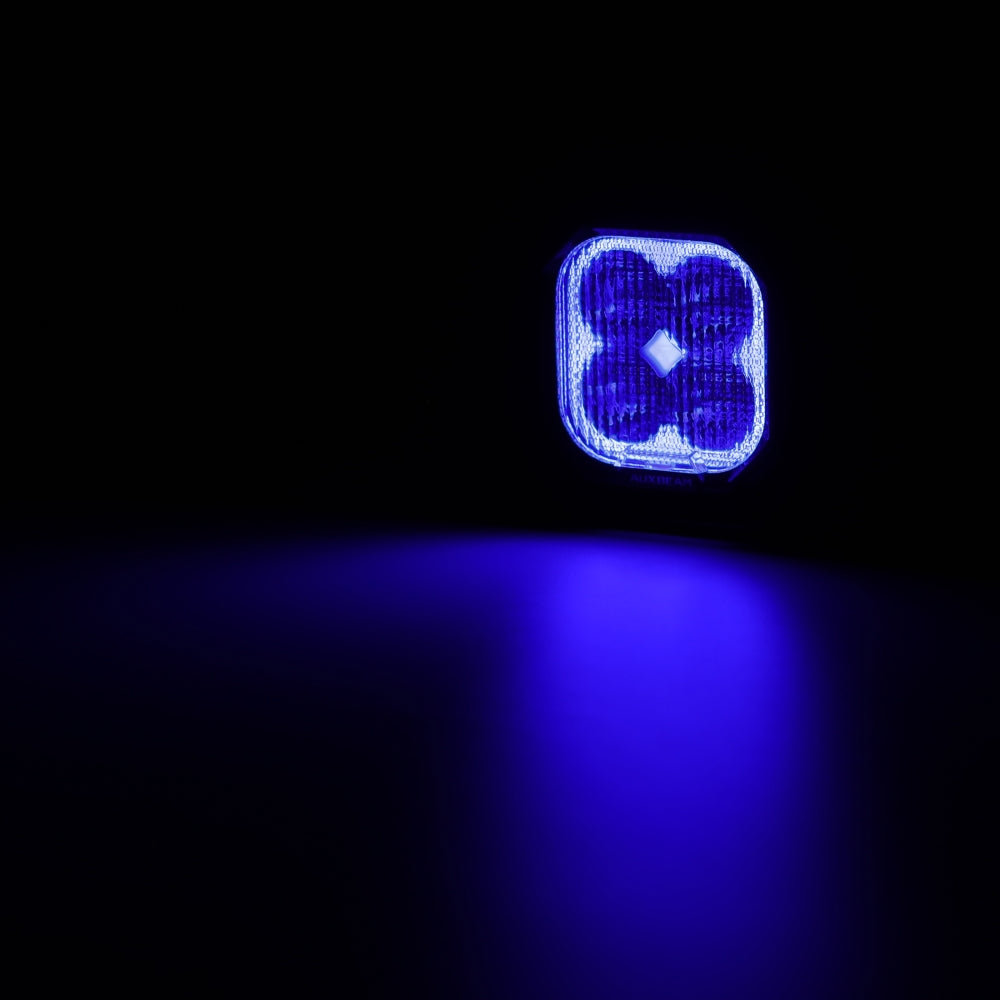

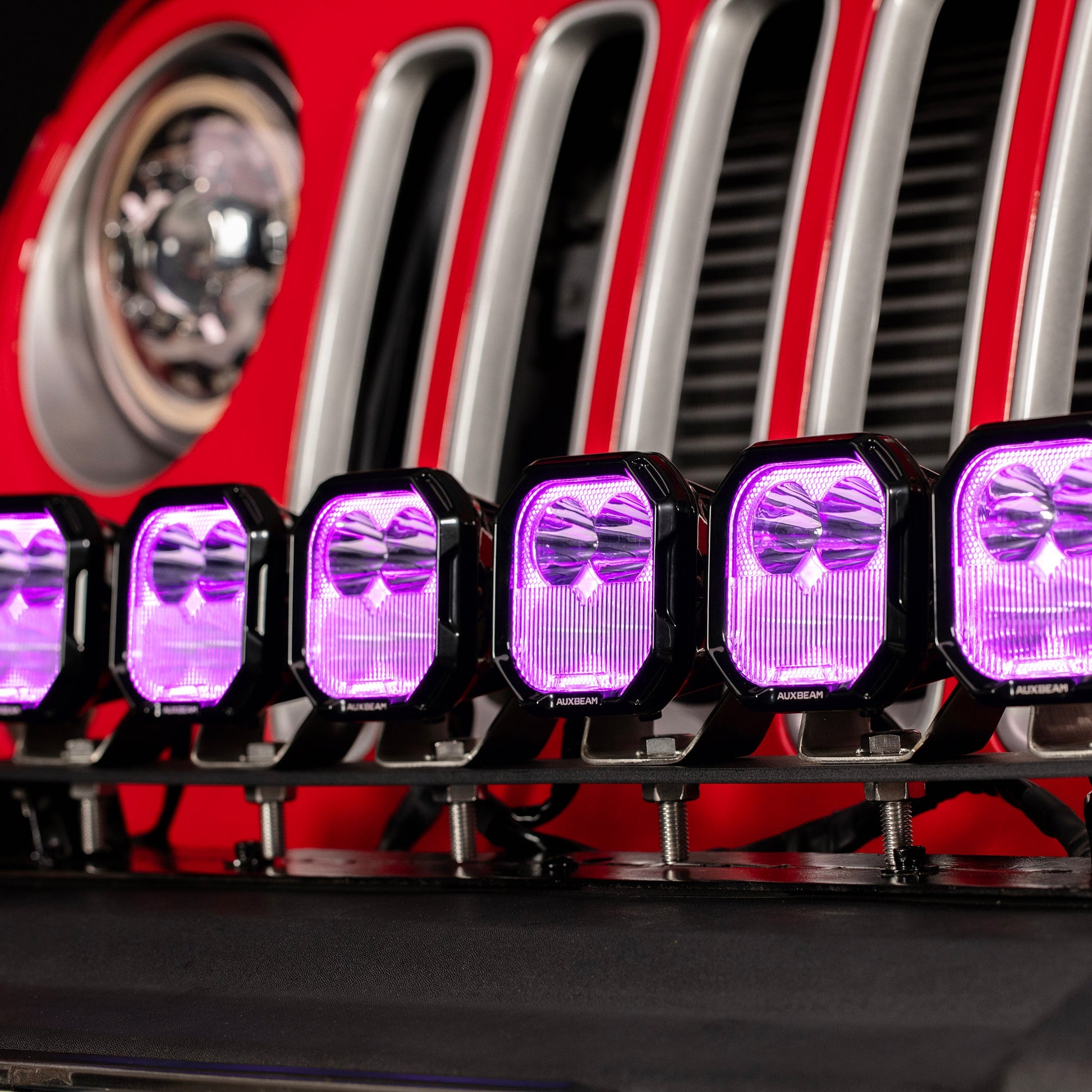

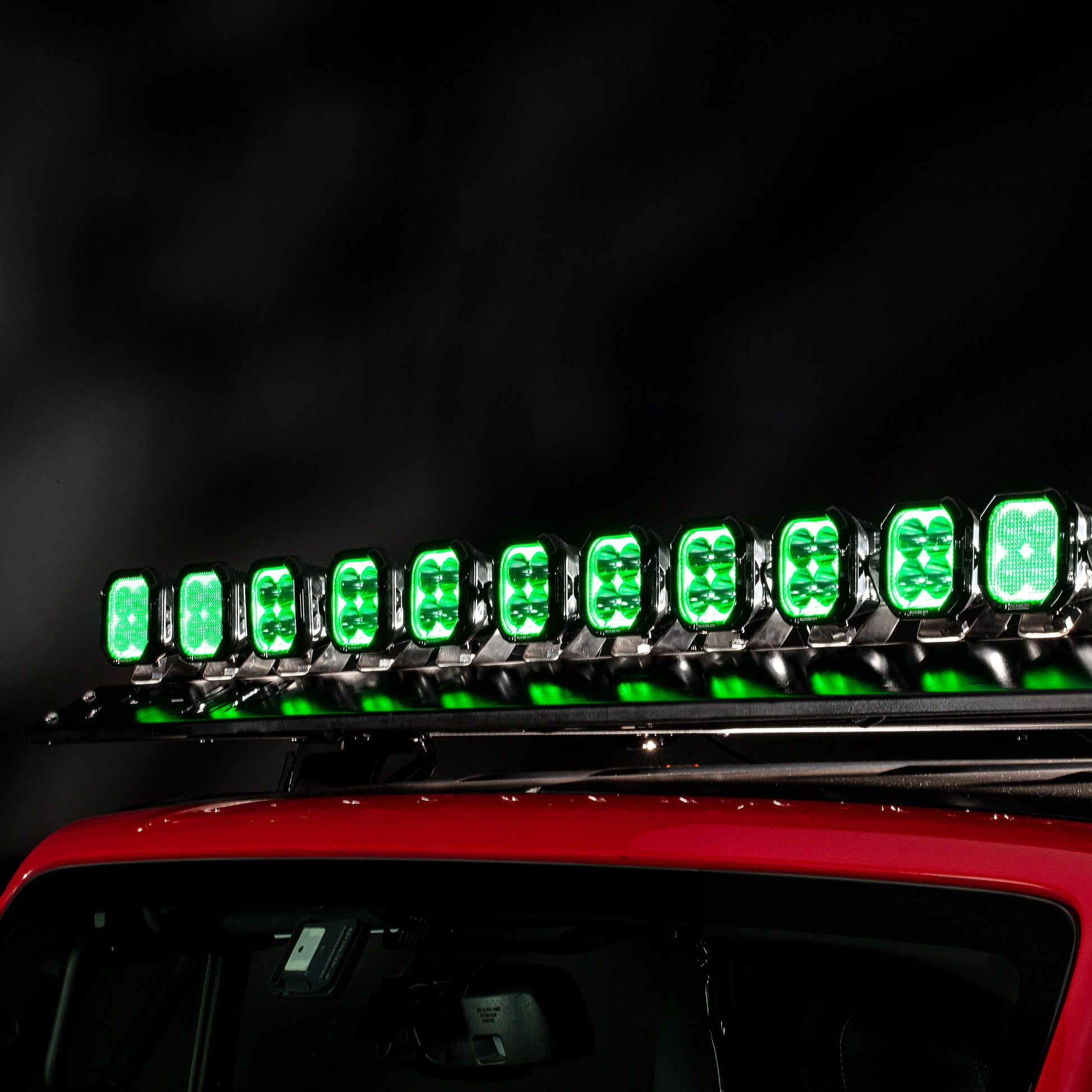

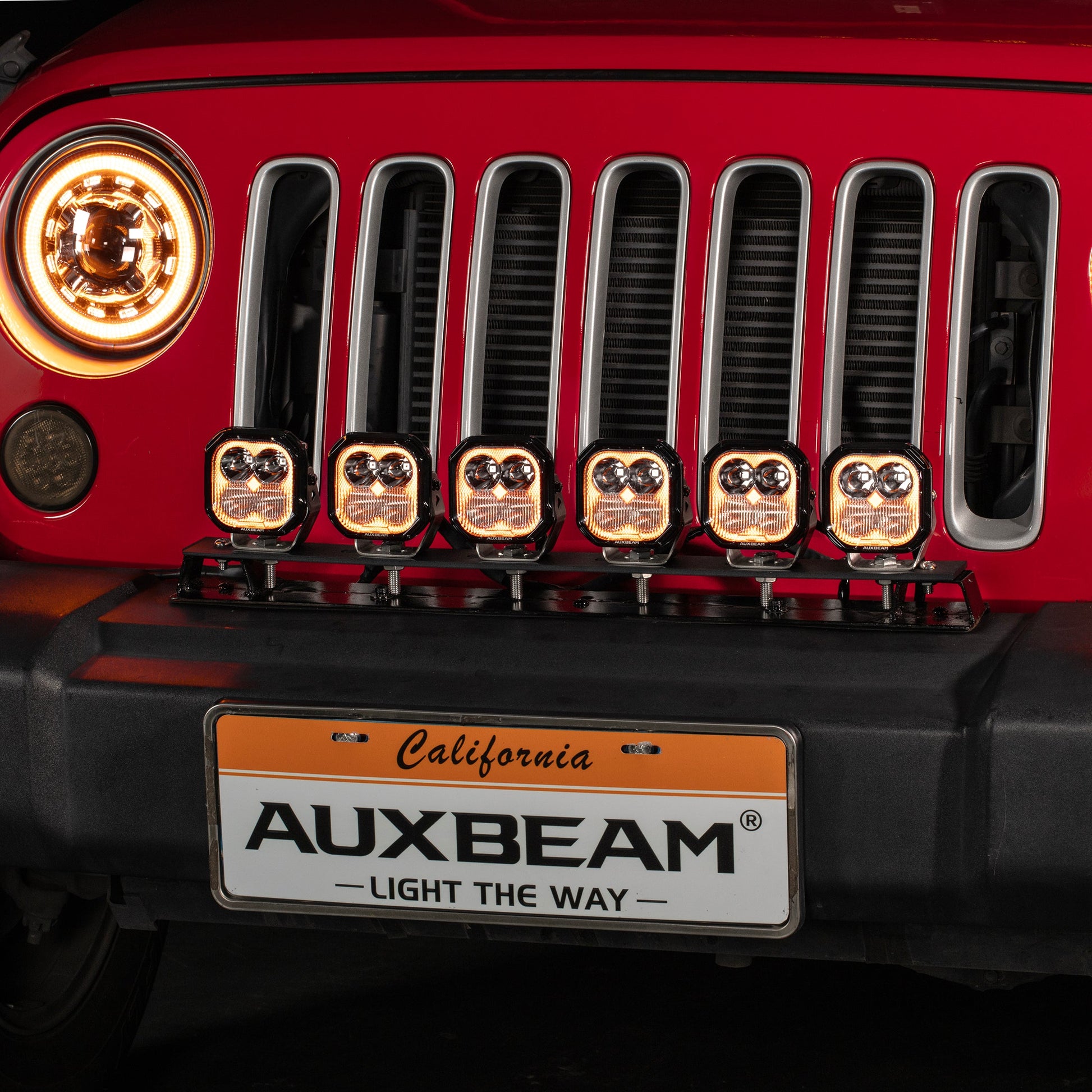

7+1 RGB Backlight Sync Modes: Features 8 customizable modes: Amber, Red, Blue, Green, Purple, Light Blue, White, and RGB Gradient Cycle. Independently controlled with power-off memory to auto-recall your last color setting – personalize your ambiance effortlessly.

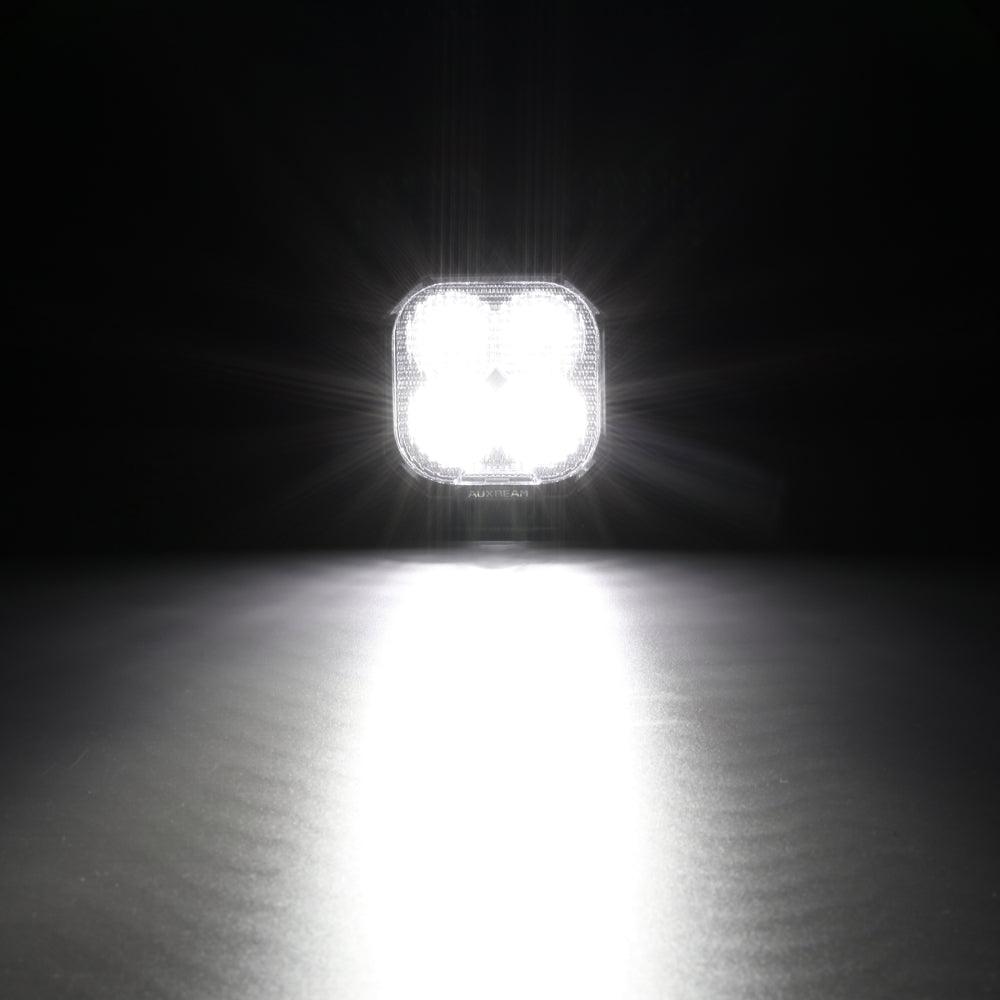

80° Ultra-Wide Flood & 186M Coverage: Massive 80° flood pattern with specialized inner cover lights up 186 meters at 1 lux. Ideal for worksite safety, campsite lighting, or off-road peripheral visibility.

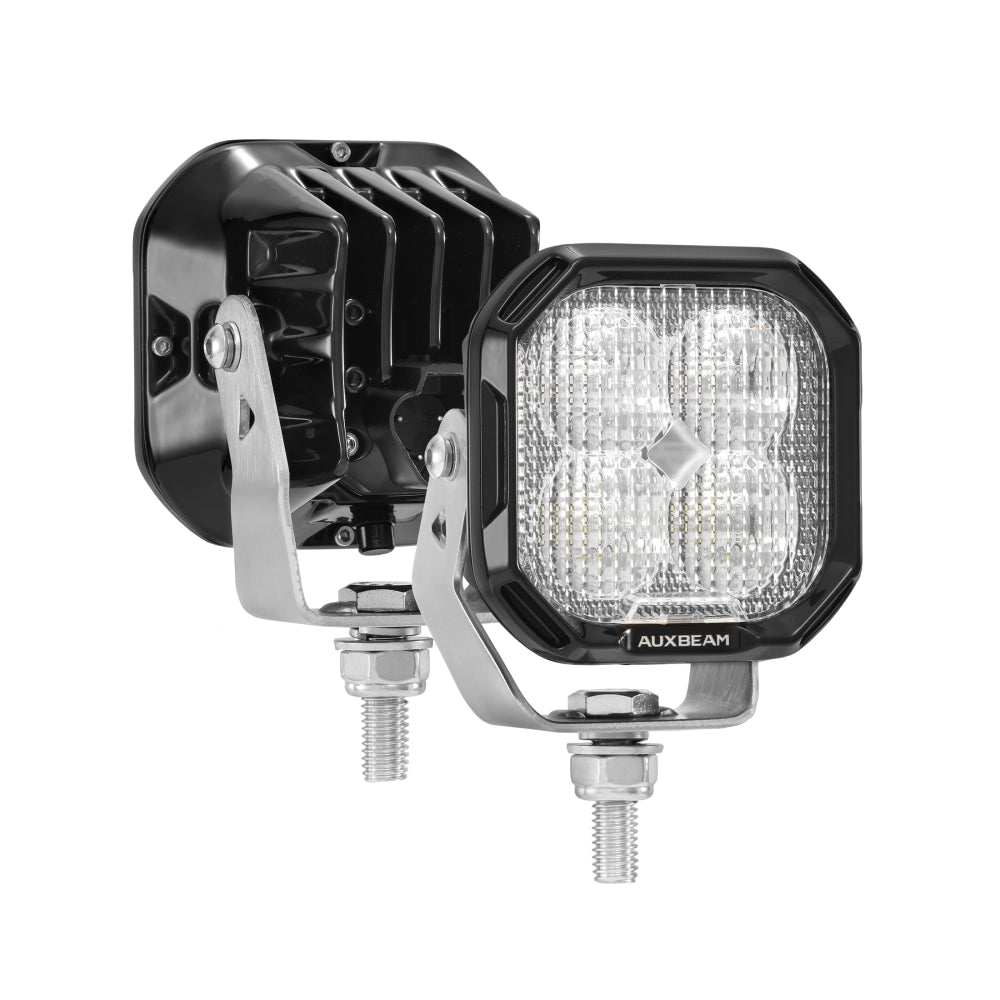

Military-Grade Toughness, Unstoppable in Extreme Conditions: Crafted with die-cast aluminum housing + 304 stainless steel bracket for impact resistance. Rated IP68 waterproof/dustproof – thrives in harsh environments (downpours, mud, dust) with a 50,000-hour lifespan.

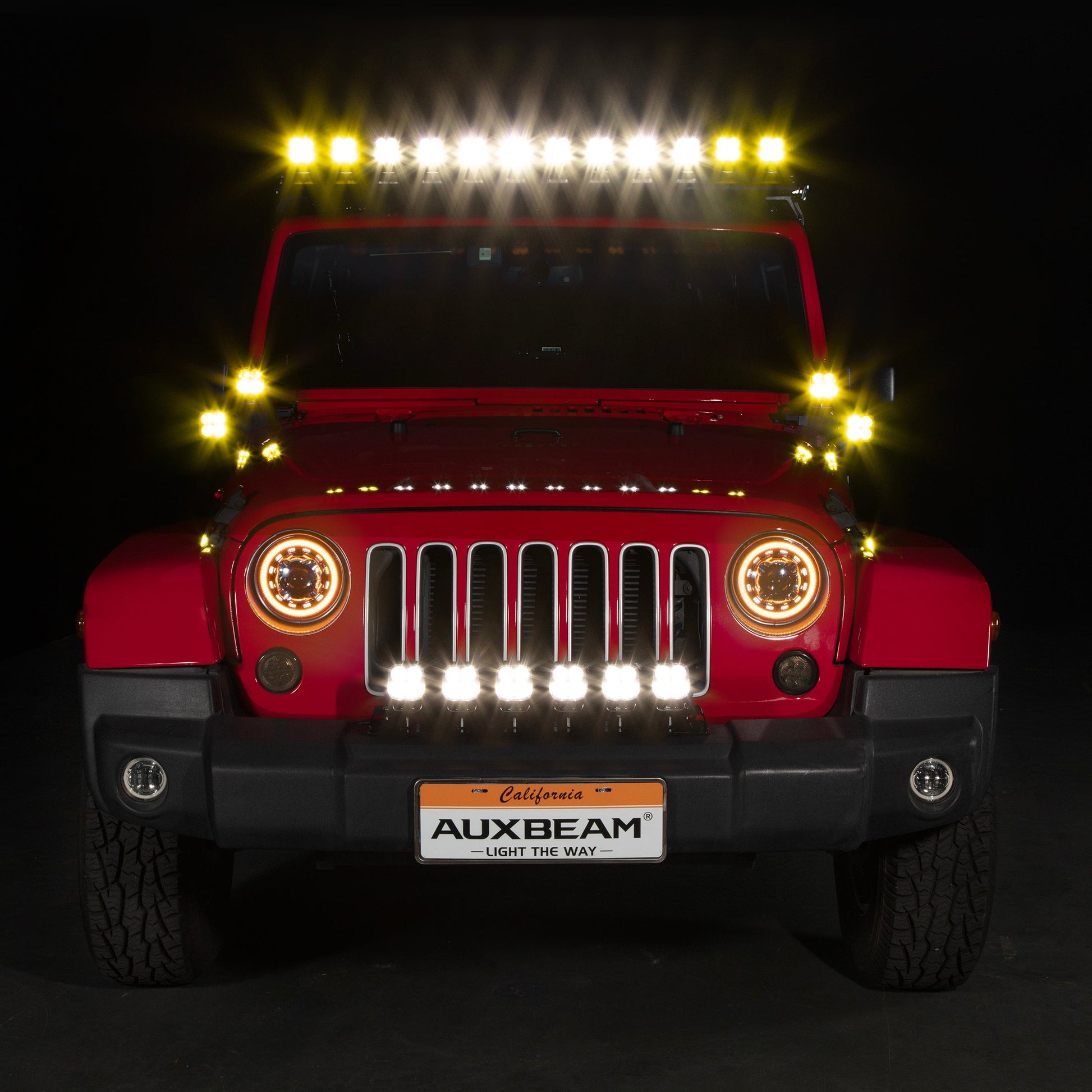

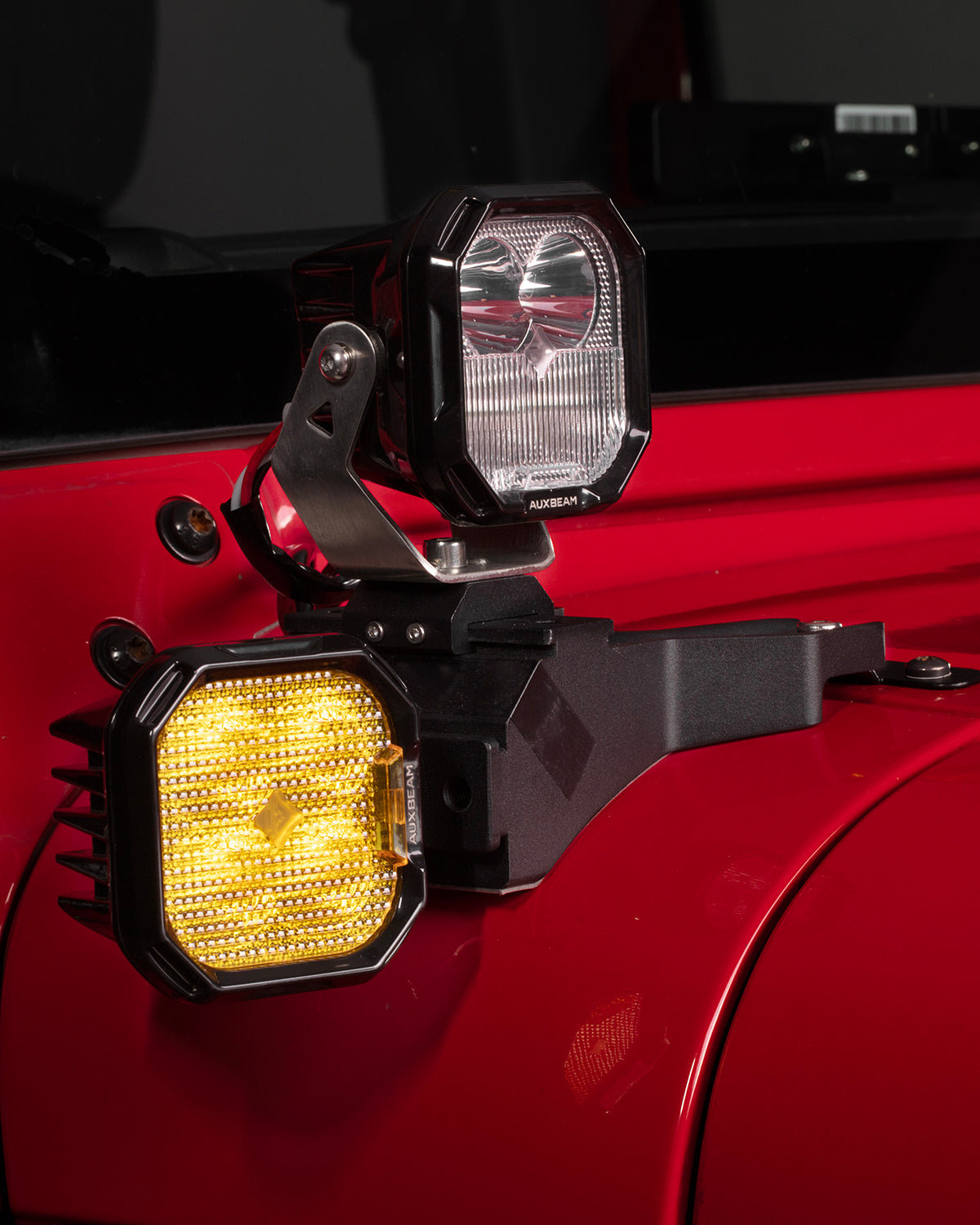

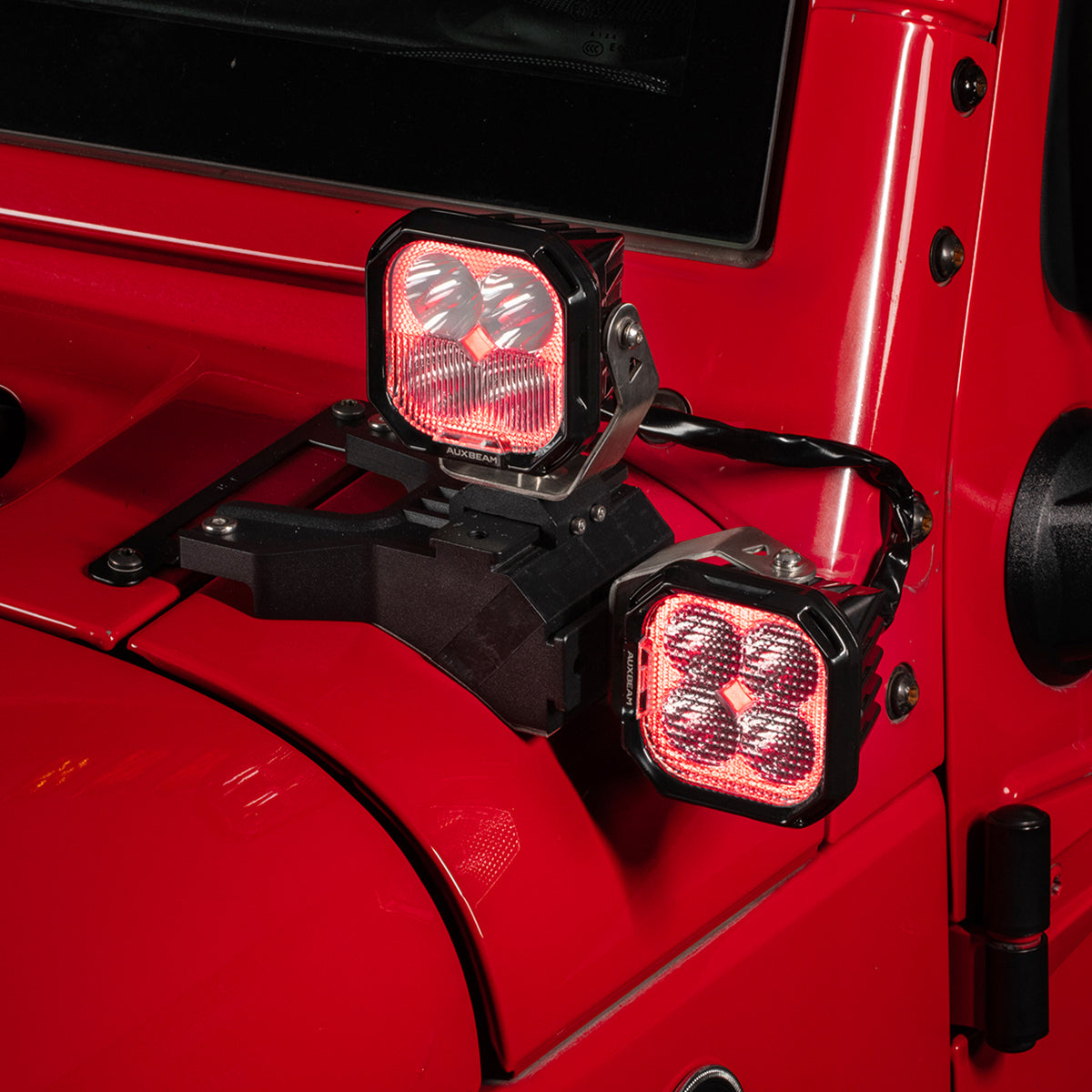

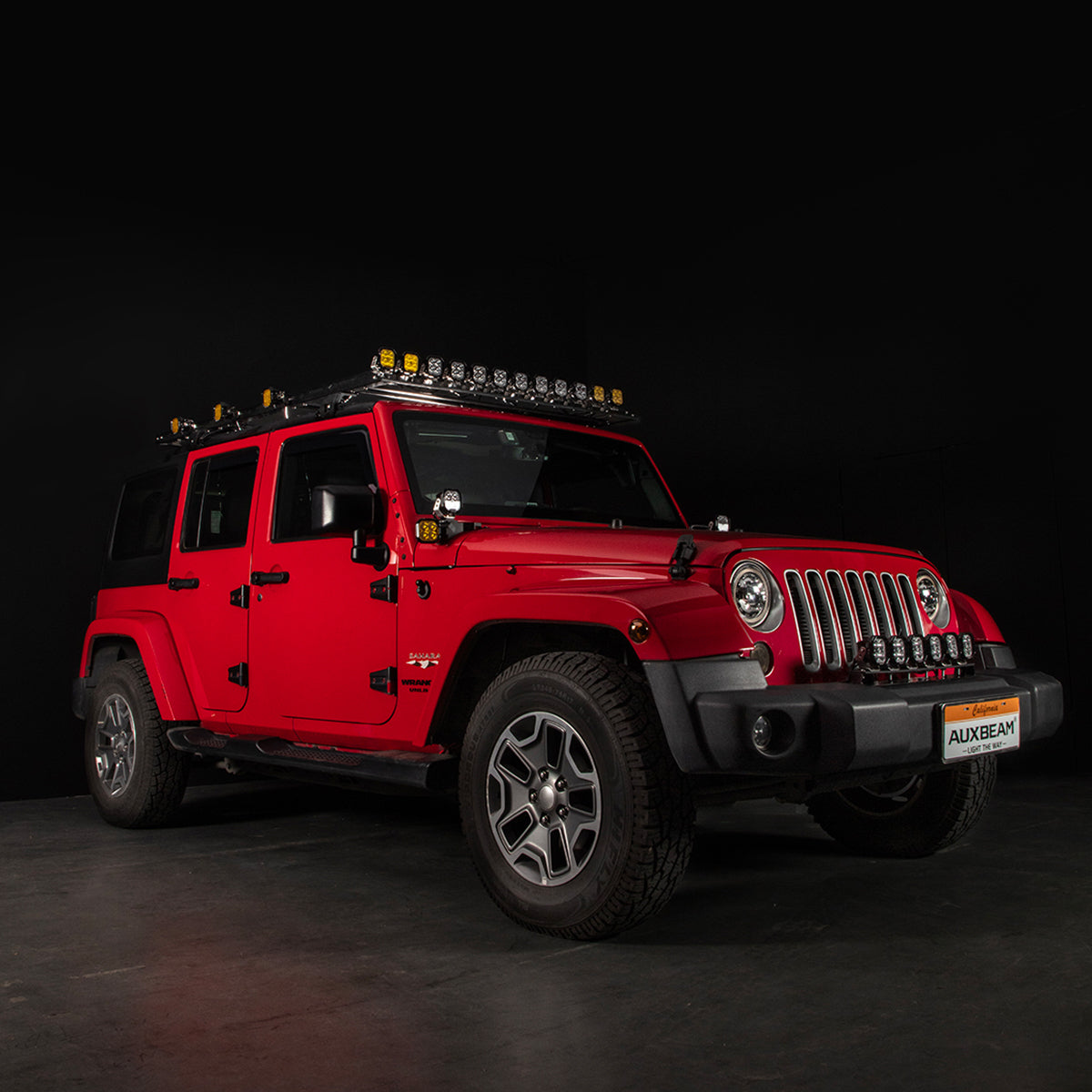

Easy To Installation: Enjoy a hassle-free, plug-and-play installation. It quick to connect and easy to mount on A-posts, bumpers, roof racks, or pre-existing bolt holes.Say goodbye to tedious installation processes!
Specification:

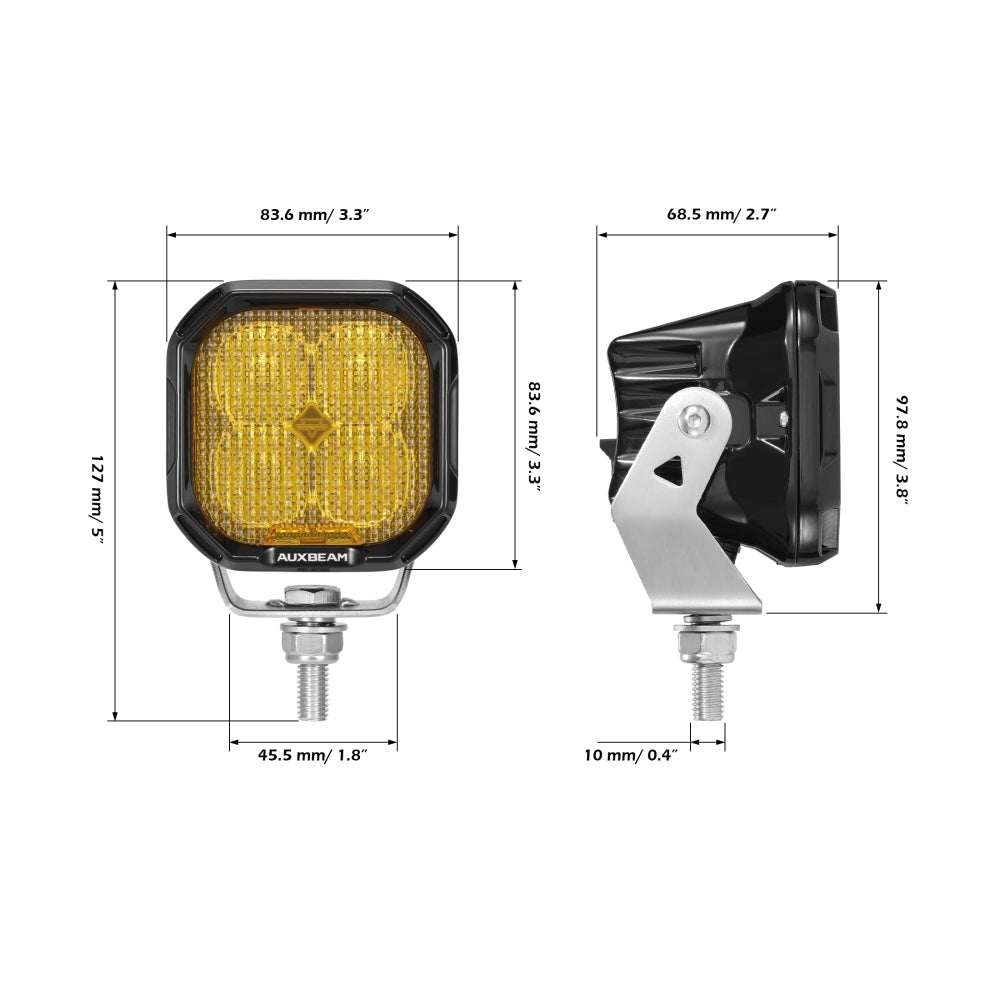

Size: 3 Inch
Working Voltage: 12V Only
Power/Set: 116W | (Main Light 50W+Max 8W RGB Backlight)*2
Total Lumens: 12960LM (Main Light 12000LM+RGB Backlight Max 960LM)
Light Pattern: Flood Beam
Beam Angle: 80°
Lighting Distance: 1lux@186M
Light Mode: Main Light+Amber/Red/Blue/Green/Purple/Light Blue/White/RGB Gradient Cycle
Main Light Bead Model: Luminus SFT-12R*2pcs+SST40-F50*2pcs
Backlight Bead Model: RGB 5050 Chips*8pcs

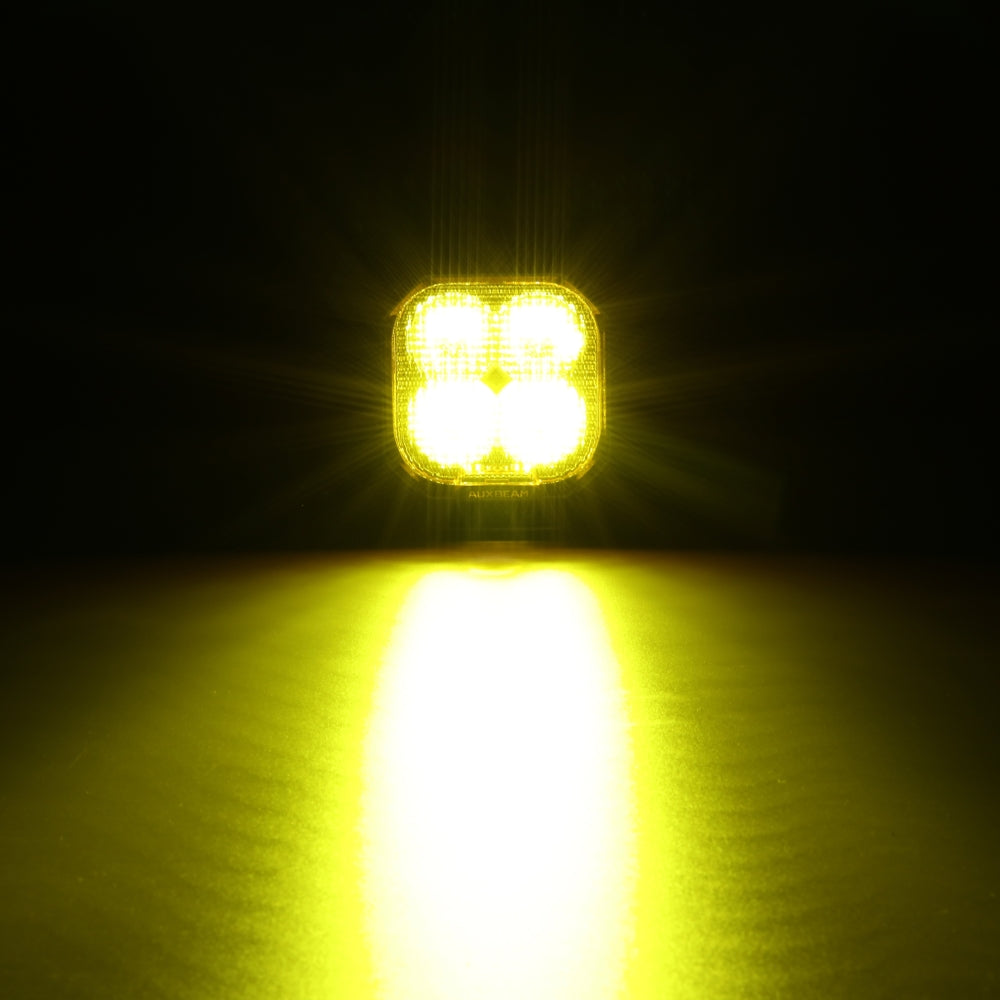

Light Color: Clear White&Amber
Color Temperature: 6500K/3000K
Housing Material: Aluminum Alloy
Bracket Material: 304 Stainless Steel
Lens Material: PC
Life Time: 50000+ hours
Waterproof Rate: IP68

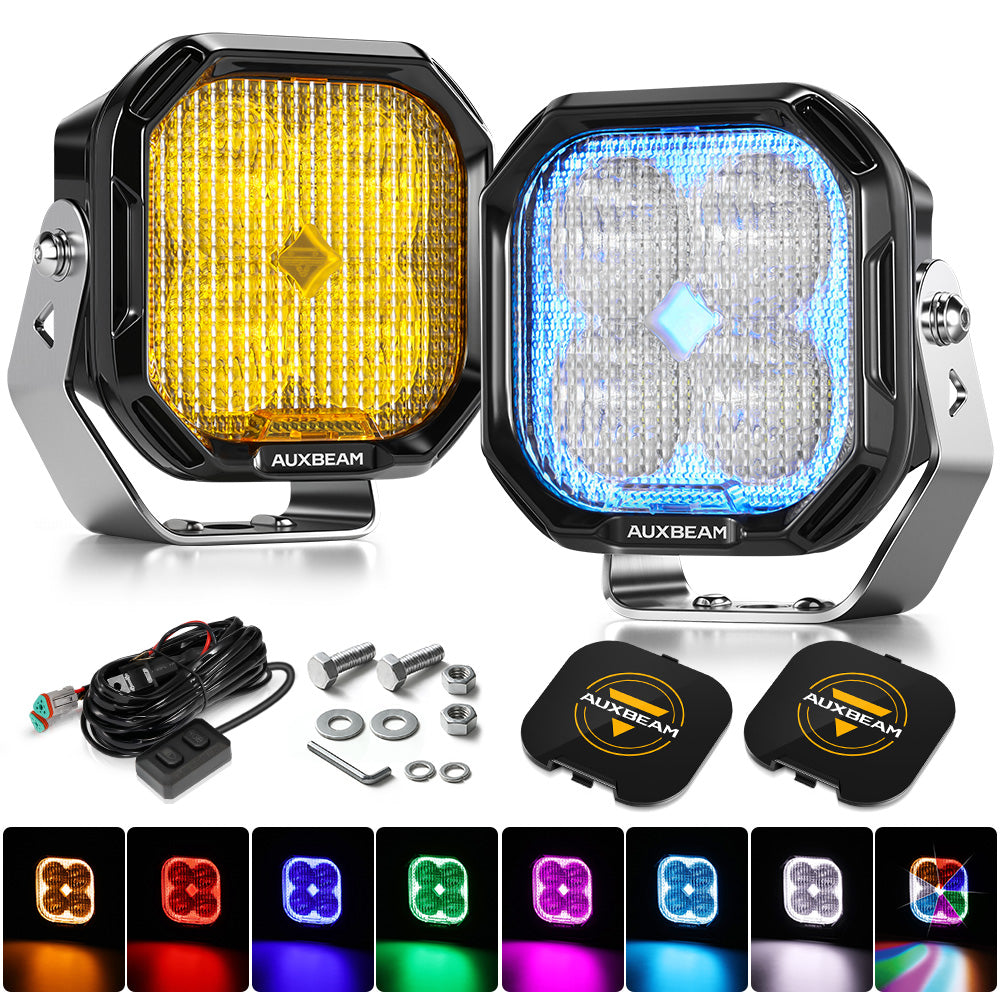

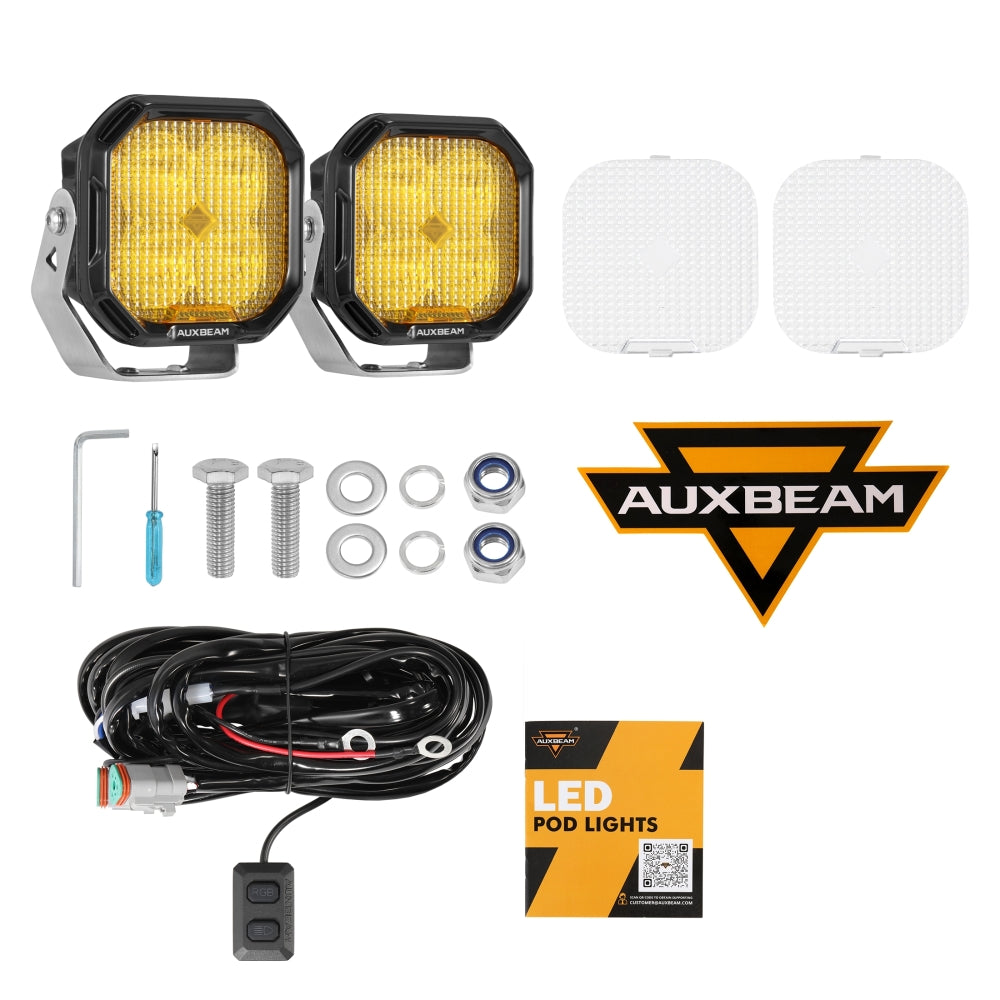

Packing Included:
2 x LED Pod Light
2 x Clear White Spot Light Inner Cover
2 x Amber Spot Light Inner Cover

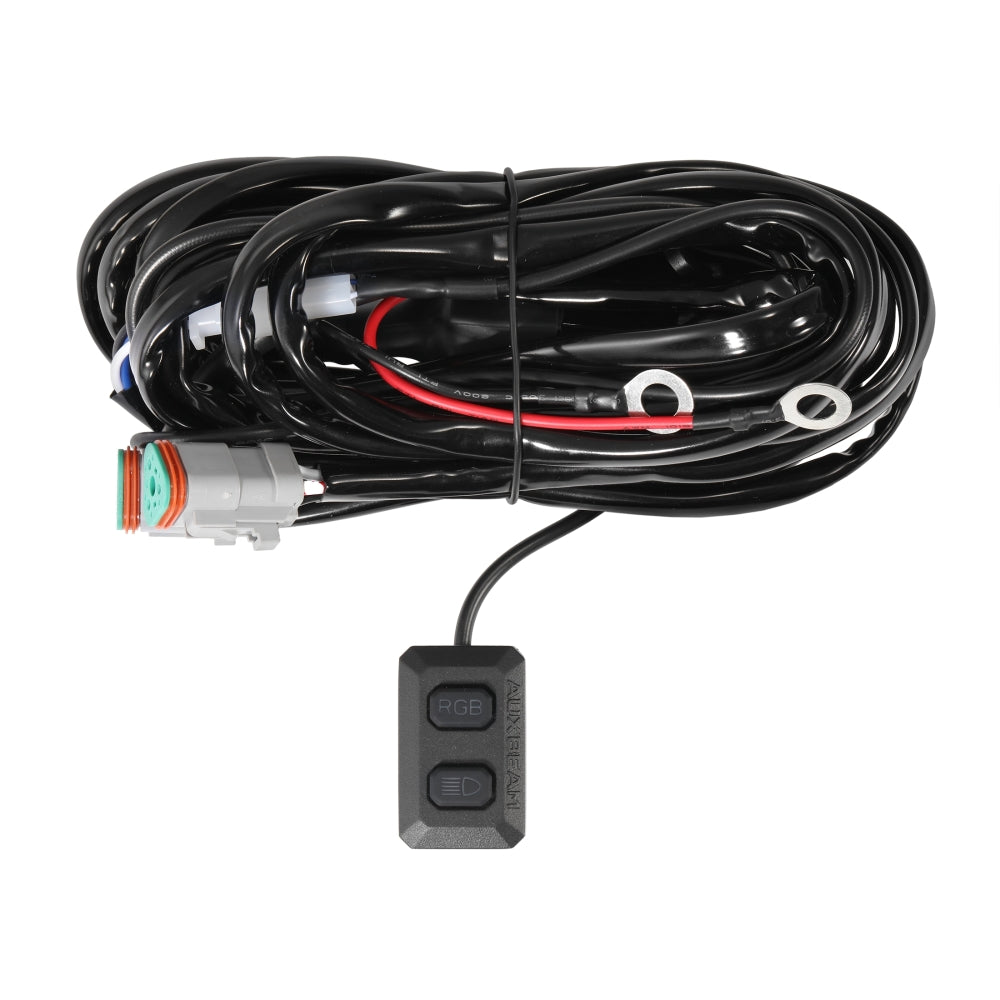

1 x Wiring Harness 2 Leads（with special switch button ）
1 x Srew Accessories（with crowbar）
1 x Operating Manual
